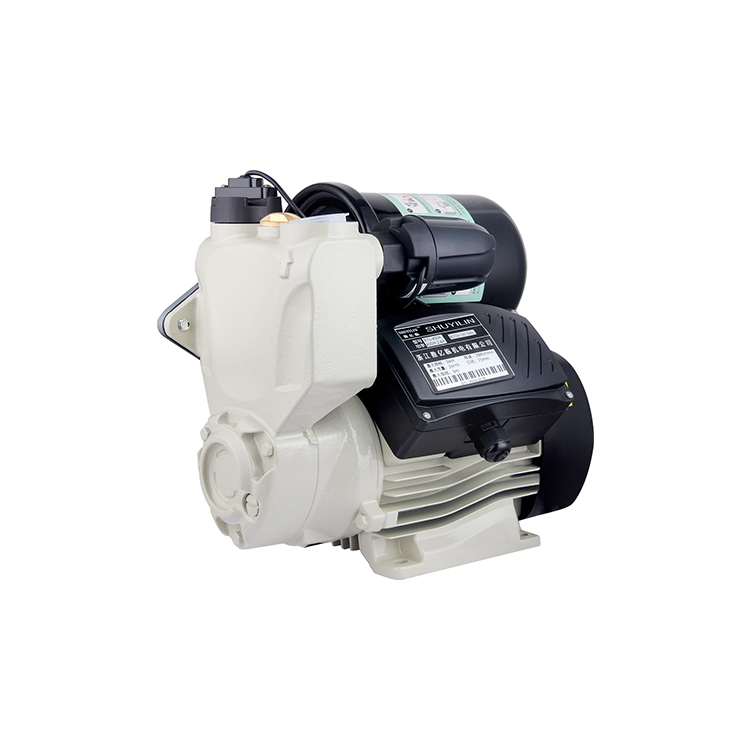

Road Ground Pump 002

Material:

Pumo body:Cast iron（HT200）

Motor support:Aluminum

Impeller:Brass

Motor shaft:CS 45#or stainless steel

Mechanical seal:Ceramic +Silioon carbide

100%Copper Winding

Motor:

2 pole induction motor

Single phase 220v，50/60Hz

Insulation:Class B/ClassF

Protection IP 44

With capacitor and thermal overload protection.

+86-18869976464 Contact Us

Description
inquiry

（Model）	Power (W)	Volt (V/Hz)	Speed (r/min)	最Max Flow (l/min)	Max Delivery (m)	Sact Lift (m)	Inlet/outlet （mm）	Weight （kg）
25WZB-15-125A	125	220,50Hz	2860	25	20	8	25（1"）	10.5
25WZB-15-200A	200	220,50Hz	2860	28	25	8	25（1"）	11.5
25WZB-18-300A	300	220,50Hz	2860	30	30	8	25（1"）	12
25WZB-20-400A	400	220,50Hz	2860	35	35	8	25（1"）	13.8
25WZB-23-600A	600	220,50Hz	2860	40	40	8	25（1"）	14
25WZB-25-800A	800	220,50Hz	2860	45	45	8	25（1"）	16.7
25WZB-28-1100A	1100	220,50Hz	2860	50	50	8	40（1½"）	17

Company Profile

Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, Road Ground Pump 002 and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
