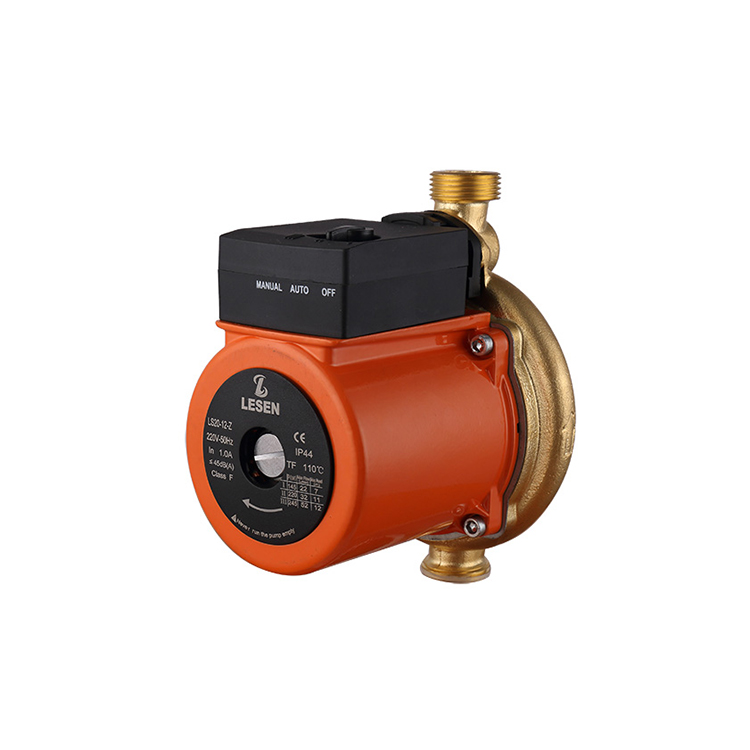

Stainless Steel Circulating Pump

Pump Body:Cast iron

Rotor Can:Stainless Steel

Bearing:Ceramic/Graphite
Impeller:PP/Stainless Steel

Shaft:Ceramic/Stainless Steel

Insulation Class:F
Motor Housing:Aluminium

Back Plate:Stainless Steel

Protection Class:IP 44

+86-18869976464 Contact Us

Description
inquiry

（Model）	Power (W)	Voltage (V)	Frequency (Hz)	Connection size (IN)	Rotating speed (r/min)	Maximum lift (m)	Maximum flow (L/min)	Inlet/Outlet (IN)	NW (Kg)
LRS12/9-Z	120	110-127 220-240	50/60	3/4*1/2"	2580/3300	9	15
LRS12/11-2	200	110-127 220-240	50/60	3/4**1/2"	2580/3300	11	20
LRS20/15-Z	260	110-127 220-240	50/60	1**3/4"	2580/3300	15	45
LRS12/9-ZG	100	110-127 220-240	50/60	3/4**1/2"	2520/3300	9	15
LRS15/9-ZG	100	110-127 220-240	50/60	1"3/4"	2520/3300	9	30
LRS15/12-ZG	200	110-127 220-240	50/60	1*3/4"	2520/3300	12	45
LRS15/15-ZG	300	110-127 220-240	50/60	1*"3/4"	2520/3300	15	55
LRS12/9-Z	100	110-127220-240	50/60	3/4"X1/2"	2520/3330	9	15
LRS15/9-Z	100	110-127220-240	50/60	1"X3/4"	2520/3330	9	30
LRS15/12-Z	200	110-127220-240	50/60	1"X3/4"	2520/3330	12	45
LRS15/15-Z	300	110-127 220-240	50/60	1"X3/4"	2520/3330	15	55
LRS15/4	72/53/38					4.5/4/3	39/29/18	1"	2.1
LRS25/4-130	72/53/38					4.5/4/3	49/35/21	1%"	2.2
LRS25/4-180	72/53/38					4.5/4/3	57/39/21	1%"	2.4
LRS32/4	72/53/38					4.5/4/3	66/44/22	2"	2.6
LRS15/6	93/67/46					2006/5/3	48/35/21	1"	2.3
LRS20/6	93/67/46					2006/5/3	55/38/22	1%"	2.4
LRS25/6-130	93/67/46					2006/5/3	55/38/22	1%"	2.4
LRS25/6-180	93/67/46					2006/5/3	69/48/26	1%"	2.6
LRS32/6	93/67/46					2006/5/3	70/48/26	2"	2.8
LRS15/7	135/93/67					2007/6/5	55/45/29	1"	2.6
LRS25/7-130	135/93/67					7/6.5/4.5	64/51/32	1%"	2.8
LRS26/7-180	135/93/67					7/6.5/4.5	69/54/35	1%"	2.9
LRS32/7	135/93/67					7/6.5/4.5	70/56/36	2"	3.1
LRS15/8	165/115/75					2008/7/5	65/42/22	1"	3.3
LRS15/8	165/115/75					2008/7/5	98/63/36	1%"	3.4
LRS25/8	270/210/150					8/7.5/65	160/103/43	2"	4.8
LRS32/8	165/115/75					11/7/3.4	35/20/10	1"	3.9
LRS20/11	245/220/145					2012/11/7	52/32/22	1"	4.5
LRS20/12	245/220/145					2012/11/7	62/37/23	1%"	4.5
LRS25/12	270/210/150					14/13/10	68/48/28	1%"	5.1

Company Profile

Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, Stainless Steel Circulating Pump and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!
