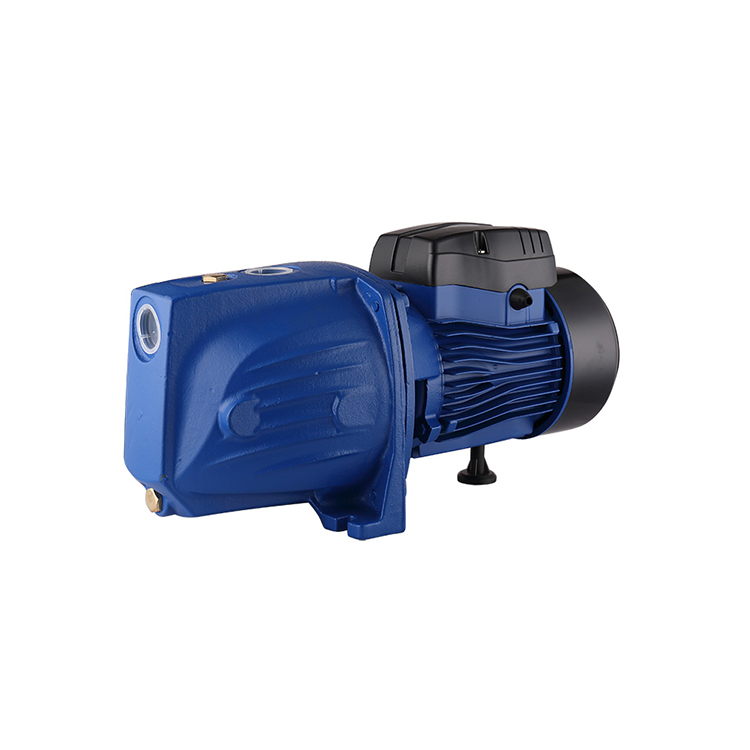

JSW

Performance Range
Flow rate up to 80L/min（4.8m2/h）
Head upto 55m
Operating Limits：
Suction liftupto 9m
Fluid temperature upto 60℃
Maximum ambient temperature40℃
Standard Data And Equipment：
Single phase 220V/50Hz.Brass impeller，carbon steel motor shaft，with themal protector inside.Other model and material such as three phase，110V，60Hz，dual voltage，stainless shaft.ect.will be avalilable upon request.
+86-18869976464 Contact Us
  • Description
  • inquiry

  • MODEL

    POWER

    KW/HP

    HIGHEST HEAD (m)

    MAX.CAPACITY

    (L/min)

    Inlet/Outlet

    (inch)

    Sact Lift

    (m)

    JSW-8M

    0.37/0.5

    35

    50

    1"X1"

    9

    JSW-10M

    0.75/1

    46

    80

    1"X1"

    9

    JSW-15M

    1.1/1.5

    55

    80

    1 4/1"X1"

    9

    JSW-10MA

    0.75/1

    46

    80

    1"X1"

    9
