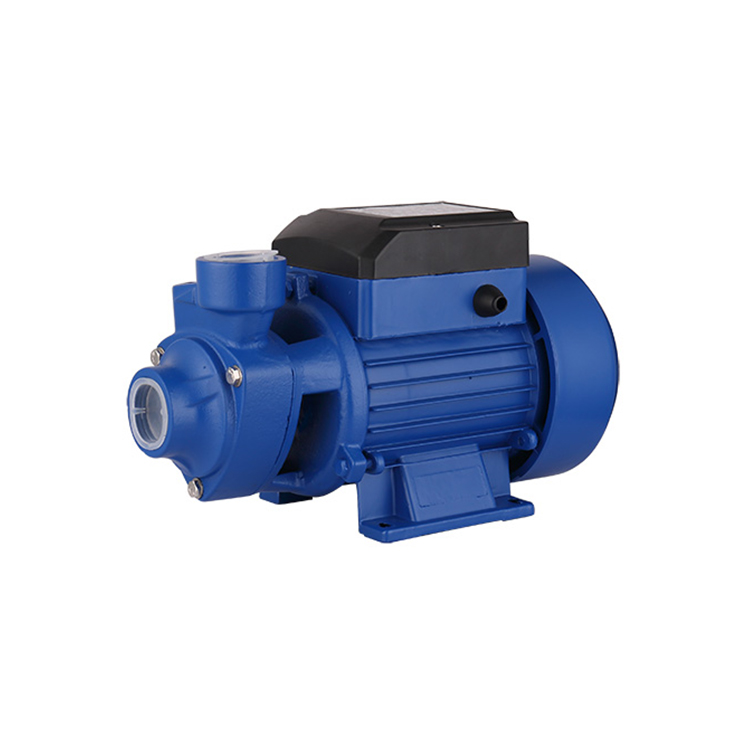

QB vortex pump

Performance Range：
Flow rate up to 60L/min（3.6m/h）
Operating Limits：
Suction liftupto 9m
Fluid temperature upto 60℃
Maximum ambient temperature 40℃
Standard Data And Equipment：
Single phase 220V/50Hz.Brass impeller，carbon steel motor shaft，with themal protector inside.Other model and material such as three phase，110V，60Hz，dual voltage stainless shaft，ect，will be available upon request.
+86-18869976464 Contact Us
  • Description
  • inquiry

  • 型号

    MODEL

    功率

    POWER

    KW/HP

    最高扬程

    HIGHEST HEAD (m)



    最大流量

    MAX.CAPACITY

    (L/min)

    口径

    Inlet/Outlet

    (inch)



    吸程

    Sact Lift

    (m)

    重量

    N.M

    (kg)

    QB/1-60

    0.37/0.5

    36

    36

    1"X1"

    9

    5.5

    QB/2-70

    0.55/0.75

    50

    50

    1"X1"

    9

    8.5

    QB/3-80

    0.75/1

    60

    60

    1"X1"

    9

    9
