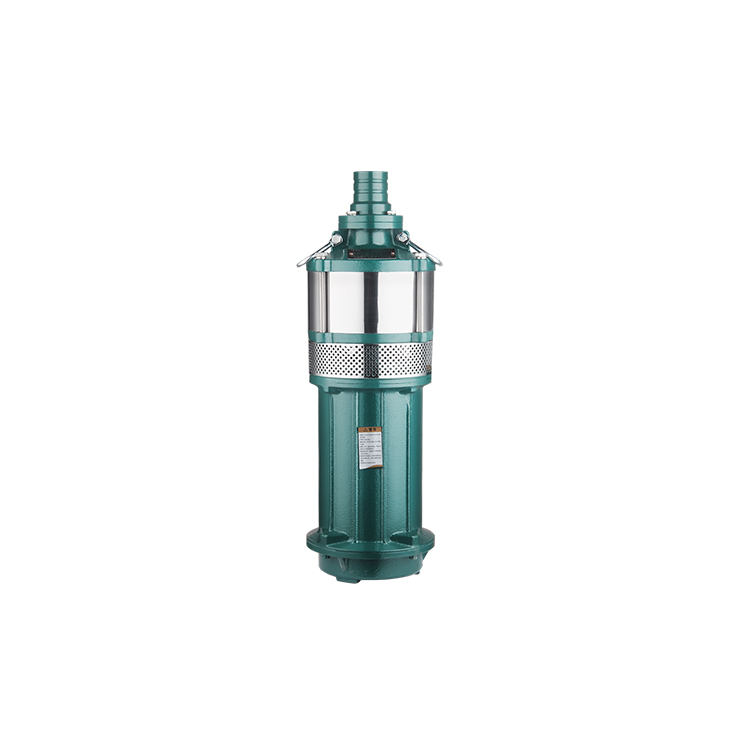

QD submersible pump

CONDITION
1.Medium temperature is not more than +40 DEGC
2.Medium PH value between 6.5～8.5
3.Containing solid impurities in the medium volume ratio
of not more than 0.1%
4.Diving depth of up to 100m
5.Only pumping water pump
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Flow
    (m³/h)    		 Lift
    (m)    		 Power
    (Kw)    		 Voltage
    (V)    		 Frequency
    (Hz)
    Rotating speed
    (r/min)    		 Piping
    (mm)
    QD3-28/2-0.75 3 28 0.75 220 50 2860 25
    QD4-40/3-0.85 4 40 0.85 220 50 2860 25
    QD6-36/2-1.1 6 36 1.1 220 50 2860 25
    QD8-50/3-1.5 8 50 1.5 220 50 2860 25
    QD3-60/4-2.2 3 60 2.2 220 50 2860 25
    QD3-80/5-2.5 3 80 2.5 220 50 2860 25
    QD3-100/6-2.8 3 100 2.8 220 50 2860 25
    QD10-26/2-1.8 10 26 1.8 220 50 2860 50
    QD10-36/3-2.2 10 36 2.2 220 50 2860 50
    Q3-28/2-0.75 3 28 0.75 380 50 2860 25
    Q4-40/3-0.85 4 40 0.85 380 50 2860 25
    Q6-36/2-1.1 6 36 1.1 380 50 2860 25
    Q8-5/3-1.5 8 50 1.5 380 50 2860 25
    Q3-60/4-2.2 3 60 2.2 380 50 2860 25
    Q3-80/5-2.5 3 80 2.5 380 50 2860 25
    Q3-100/6-2.8 3 100 2.8 380 50 2860 25
    Q10-26/2-1.8 10 26 1.8 380 50 2860 50
    Q10-36/3-2.2 10 36 2.2 380 50 2860 50
    QY15-26-2.2 1.5 26 2.2 380 50 2860 50
    QY25-17-2.2 2 17 2.2 380 50 2860 65
    QY40-12-2.2 1.5 12 2.2 380 50 2860 75
    QY65-7-2.2 3 7 2.2 380 50 2860 100
    QY100-4.5-2.2 7 4.5 2.2 380 50 2860 150
    QY15-36-3 3 36 3 380 50 2860 50
    QY25-26-3 3 26 3 380 50 2860 65
    QY40-16-3 1.5 16 3 380 50 2860 75
    QY65-10-3 7 10 3 380 50 2860 100
    QY100-6-3 10 6 3 380 50 2860 150
    QY160-5-3 1.5 5 3 380 50 2860 150
    QY12.5-50-4 2 50 4 380 50 2860 50
    QY25-32-4 8 32 4 380 50 2860 65
    QY40-21-4 10 21 4 380 50 2860 75
    QY65-15-4 20 15 4 380 50 2860 100
    QY100-9-4 15 9 4 380 50 2860 150
    QY12.5-60-5.5 25 60 5.5 380 50 2860 50
    QY25-40-5.5 35 40 5.5 380 50 2860 65
    QY40-28-5.5 55 28 5.5 380 50 2860 75
    QY65-19-5.5 1.5 19 5.5 380 50 2860 100
    QY160-9-5.5 2 9 5.5 380 50 2860 150
    QY250-6-5.5 1.5 6 5.5 380 50 2860 200
    QY10-110/2-7.5 3 110 7.5 380 50 2860 50
    QY25-50-7.5 7 50 7.5 380 50 2860 65
    QY40-38-7.5 3 38 7.5 380 50 2860 75
    QY80-22-7.5 3 22 7.5 380 50 2860 100
    QY200-12-7.5 1.5 12 7.5 380 50 2860 150
    QY260-8-7.5 7 8 7.5 380 50 2860 200
