Iron pump head deep well pump 100QJDY Suppliers

Home / Product / Borewell Pump / Iron pump head deep well pump 100QJDY

PDF Download

How Can We Help You ?

The company firmly believes that science and technology are the primary productive forces. Rely on quality for survival, rely on technological innovation for development.

+86-18869976464 Contact Us
  • Iron pump head deep well pump 100QJDY
  • Iron pump head deep well pump 100QJDY

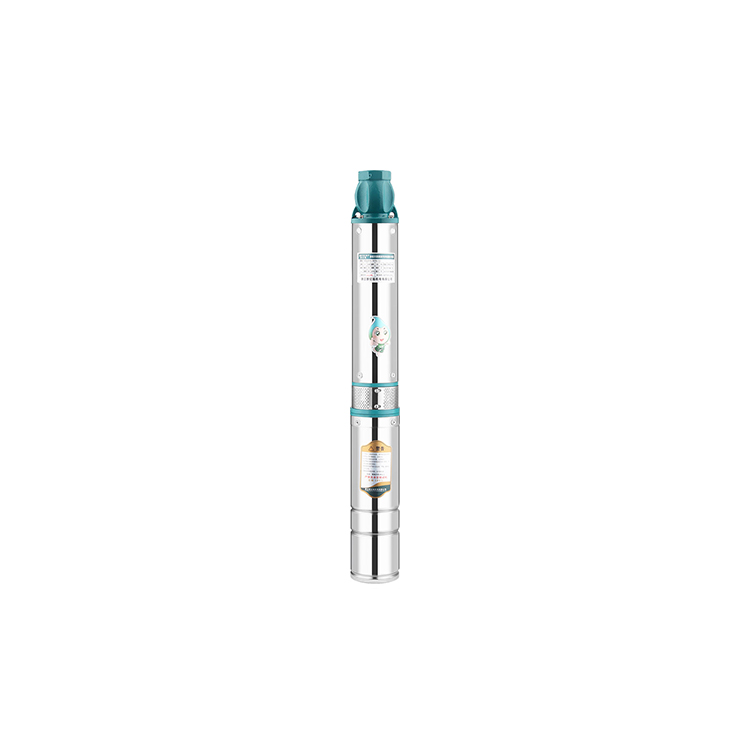

Iron pump head deep well pump 100QJDY

1. The volume ratio of solid impurities in the mecdium shall not exceed 0.1%, and the particle size shall not exceed 0.2mm
2. Mecdium temperature not more than +20c
3. PH value of medum is between 6.5-8.5
4. The deepest depth of submergence shall not exceed 20 m,and the shalowest depth shall not be less than5m
+86-18869976464 Contact Us
  • Description
  • inquiry
  • （Model） Flow
    (m³/h)    		 Lift
    (m)    		 Power
    (Kw)    		 Voltage
    (V)    		 Frequency
    (Hz)
    Rotating speed
    (r/min)    		 Piping
    (mm)
    QGD1.2-50-0.37 1.2 50 0.37 220 50 2860 25
    QGD1.8-55-0.55 1.8 55 0.55 220 50 2860 25
    QGD1.2-60-0.75 1.2 60 0.75 220 50 2860 25
    QGD1.2-60-0.8 1.2 60 0.8 220 50 2860 25
    QGD2-70-0.9 2 70 0.9 220 50 2860 25
    QGD2-80-0.95 2 80 0.95 220 50 2860 25
    QGD2-120-1.1 2 120 1.1 220 50 2860 25
    QGD2-150-2.2 2 150 2.2 220 50 2860 25
    100QJ(D)Y2-42/6-0.75 2 42 0.75 220/380 50 2860 25/40
    100QJ(D)Y2-56/8-1.1 2 56 1.1 220/380 50 2860 25/40
    100QJ(D)Y2-70/10-1.2 2 70 1.2 220/380 50 2860 25/40
    100QJ(D)Y2-84/12-1.5 2 84 1.5 220/380 50 2860 25/40
    100QJ(D)Y2-98/14-1.8 2 98 1.8 220/380 50 2860 25/40
    100QJ(D)Y2-112/16-2.2 2 112 2.2 220/380 50 2860 25/40
    100QJ(DJY2-126/18-2.5 2 126 2.5 220/380 50 2860 25/40
    100QJ(D)Y2-140/20-2.8 2 140 2.8 220/380 50 2860 25/40
    100QJ(D)Y2-161/23-3 2 161 3 220/380 50 2860 25/40
    100QJ(D)Y2-175/25-3.2 2 175 3.2 220/380 50 2860 25/40
    100QJ(D)Y2-210/30-4 2 210 4 220/380 50 2860 25/40
    90QJ(DjY2-38/7-0.75 2 38 0.75 220/380 50 2860 25/40
    90QJ(D)Y-50/9-1.1 2 50 1.1 220/380 50 2860 25/40
    90QJ(D)Y2-60/11-1.2 2 60 1.2 220/380 50 2860 25/40
    90QJ(D)Y2-72/13-1.5 2 72 1.5 220/380 50 2860 25/40
    90QJ(D)Y2-82-15-1.5 2 82 1.8 220/380 50 2860 25/40
    90QJ(D)Y2-93/17-2.2 2 93 2.2 220/380 50 2860 25/40
    90QJ(D)Y2-105/19-2.5 2 105 2.5 220/380 50 2860 25/40
    90QJ(D)Y2-120/22-2.8 2 120 2.8 220/380 50 2860 25/40
    Company Profile

    Zhejiang Shuyilin Electromechanical Co., Ltd.Our Company Mainly Deals In Water Pumps.The company has many years of experience in the production of small, Iron pump head deep well pump 100QJDY and medium-sized motor water pumps.The product specifications are complete and diverse, the design is advanced, the materials are selected, the technology is advanced and unique, and it has the advantages of excellent performance, safe and reliable use, and durability. It has won unanimous praise from customers at home and abroad.

    The company mainly produces submersible pumps, deep well pumps, sewage pumps, self-priming pumps, screw pumps, multi-stage submersible pumps, canned motor pumps and more than a dozen series and more than 300 products.All national standard motors, the head and flow are actually marked, the movement adopts high-grade all copper wire and cold-rolled silicon steel strip, wide voltage, low temperature rise, longer life, higher efficiency, and more power! Long-lasting uninterrupted operation without pressure!

    Tel +86-18869976464
    Phone +86-0576-81692988
    E-Mail [email protected]
    Head Office Address 101, Building 17, Zeguo Mechanical and Electrical Pioneer Park, Wenling City, Taizhou City, Zhejiang Province
